Which version of ActivPanel am I using? : High Point Academy

Applicable to:

ActivPanel
ActivPanel Elements Series
ActivPanel Titanium Pro

The table below compares some of the key features of each version of ActivPanel:

Version	Front view	At a glance
ActivPanel Nickel		Illuminated power button right of centre USB-OPS, USB, HDMI and Touch ports left of centre Serial number sticker located left hand side and in the Update app Model # AP7-U65, AP7-U75 or AP7-U86 Serial number: 65W26… / 75W26… / 86W26… Specification sheet Specification sheet (US) Product page
ActivPanel Cobalt		Black border around centre console USB-OPS, USB, HDMI and Touch ports left of centre Serial number sticker located left hand side and in the Update app Model # AP7-A65, AP7-A75 or AP7-A86 Serial number: 65W25… / 75W25… / 86W25… Specification sheet Product page
ActivPanel Titanium		Silver border around centre console Dual proximity sensors on bottom left and right corners USB-OPS, USB, HDMI and Touch ports left of centre Serial number sticker located on left hand side and in the Update app Model # AP7-B70, AP7-B75 or AP7-B86 Serial number: 770T… / 775T… / 786T… Specification sheet Specification sheet (US) Product page
ActivPanel Titanium Pro		Silver border around centre console Dual proximity sensors on bottom left and right corners USB-OPS, USB, HDMI and Touch ports left of centre Serial number sticker located on left hand side and in the Update app Model # AP7-C65+, AP7-C75 or AP7-C86 Specification sheet (US) Product page
ActivPanel i-Series		Power button right of centre Touch Port 1, HDMI 1 and MIC ports under central cover Serial number sticker located on underside in bottom right corner Model # VTP-65 or VTP2-75-4K Serial number: V65I-I… / V75I-I… Specification sheet Specification sheet (US) Product page
ActivPanel 6 70″ HD		Control buttons in bottom right corner USB-A, HDMI and USB-B ports in bottom left corner Pen tray along bottom edge Serial number sticker located on right side Model # AP6-70 Serial number: P70D… Specification sheet Specification sheet (US) Product page
ActivPanel 6 65″ 4K, 75″ 4K, 86″ 4K		Control buttons in bottom right corner 2 x USB-A, HDMI and USB-B ports in bottom left corner (65″ 1 x USB-A) Pen tray along bottom edge Serial number sticker located on left side Model # AP6-65-4K, AP6-75-4K or AP6-86-4K Serial number: 665F… / 675F… / 686P… Specification sheet Specification sheet (US) Product page
ActivPanel 5 70″ HD		Control buttons in bottom left corner USB-A, HDMI and USB-B ports in bottom right corner Pen tray along bottom edge Serial number sticker located on right side by the power connector Model # AP5-70 Serial number: P70B… Specification sheet Product page
ActivPanel 5 - 75″ HD		Control buttons in bottom right corner USB-A, HDMI and USB-B ports in bottom left corner Pen tray along bottom edge Serial number sticker located on right side by the power connector Model # AP5-75 Serial number: 575F… Specification sheet Product page
ActivPanel 5 - 75″ 4K, 86″ 4K		Control buttons in bottom right corner USB and HDMI ports in bottom left corner Pen tray along bottom edge Serial number sticker located on right side by the power connector Model # AP5-75-4K or AP5-86-4K Serial number: 575P… / 586P… Specification sheet Product page
ActivPanel 4.5		Control buttons in bottom left corner Multi-Media, USB-1 and USB-2 ports in bottom right corner Serial number sticker located on left side by the power connector Model # AP4-70 or AP4-80 Serial number: Q572… / Q680… Specification sheet Product page
ActivPanel 4		Media USB port in bottom left corner Control buttons down right side Serial number sticker located on underside in bottom left corner Model # AP4-55, AP4-65, AP4-75 or AP4-84 Serial number: 55E90… / 65E90K… / 75E90… / 84E90… Specification sheet Product page
ActivPanel 3		Media USB port in bottom left corner Control buttons in bottom right corner Serial number sticker located on underside in bottom left corner Model # AP-55, AP-65, AP-70 or AP-84 Serial number: 55E80… / 65E80… / 70E80… / 84E80… Specification sheet Product page
ActivPanel 2		Media USB port in bottom left corner Control buttons in bottom right corner Serial number sticker located on underside in bottom left corner Model # APT2-55, APT2-65, APT2-70 or APT2-84 Serial number: 55E80… / 65E80… / 70E80… / 84E80… Specification sheet Product page

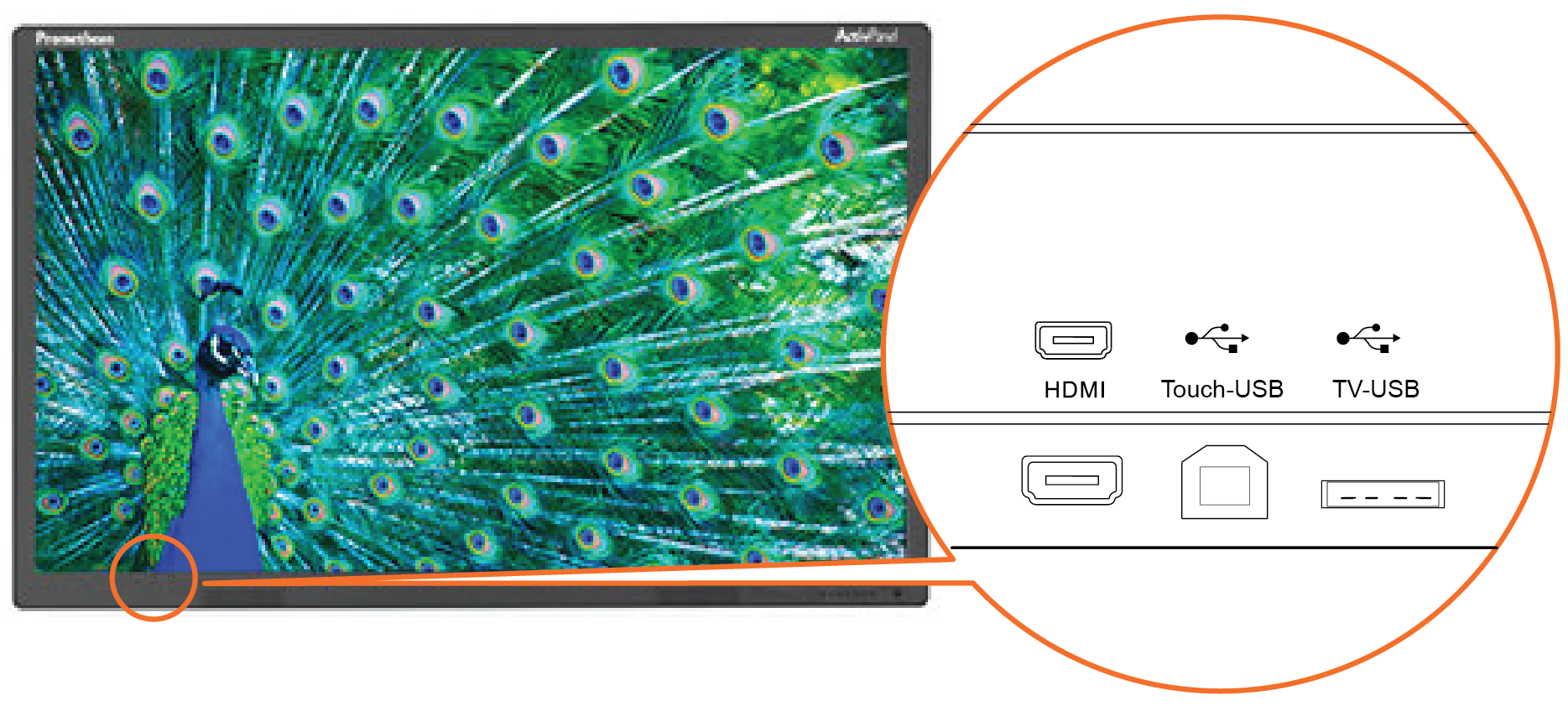

ActivPanel 1		HDMI, Touch-USB and TV-USB ports in bottom left corner Control buttons in bottom right corner Serial number sticker located on underside in bottom left corner Model # APT-65 or APT-70 Serial number: 65E78… / 70E78… Specification sheet Product page
